Project
Linux Serial Port Burning Test Tool
Screenshots
Serial port testing interface
Key Highlights
Project Journey
Situation
Background & Context
During my internship at MOXA, the QA team needed an efficient tool to test serial port functionality on industrial PCs. Manual testing was time-consuming and prone to human error, especially when testing across different architectures (ARM, x86).
Task
Goals & Objectives
Develop an automated testing tool that could verify serial port throughput, data transmission accuracy, and handle multiple architectures. The tool needed to be user-friendly for QA engineers with varying technical backgrounds.
Action
What I Did

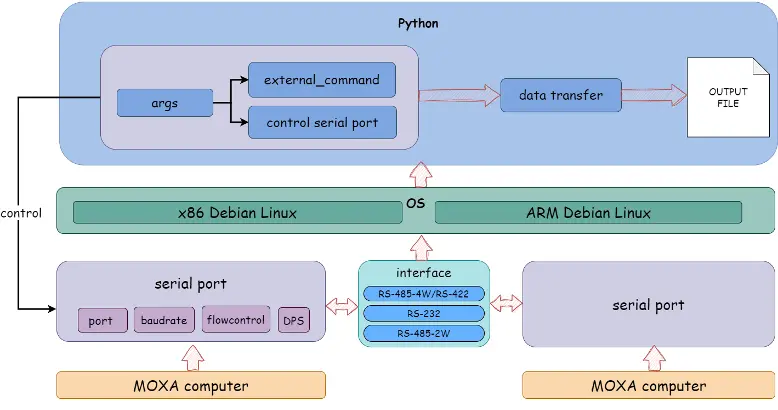

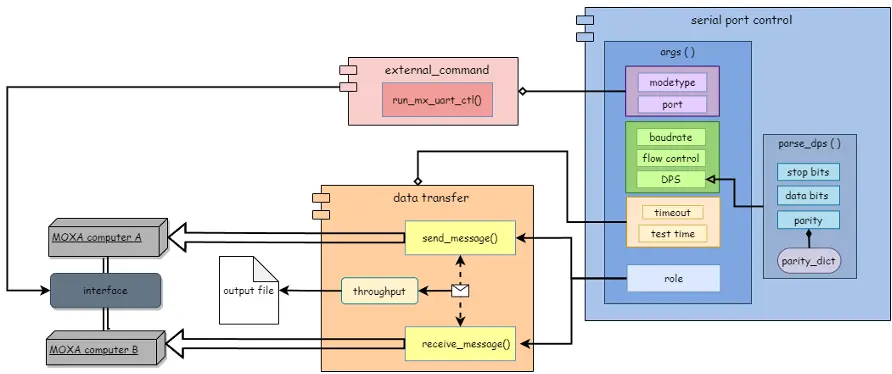

- Designed modular Python architecture for maintainability and extensibility
- Implemented serial port control using pyserial library with optimized handling
- Created comprehensive testing procedures for throughput and accuracy verification

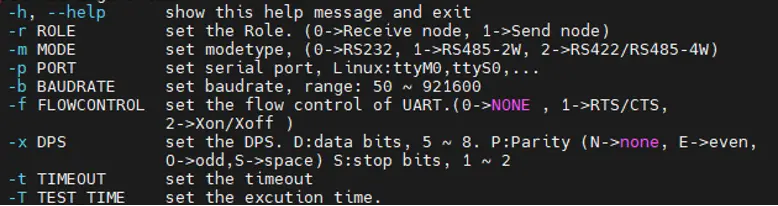

- Built an intuitive user interface for seamless testing procedures

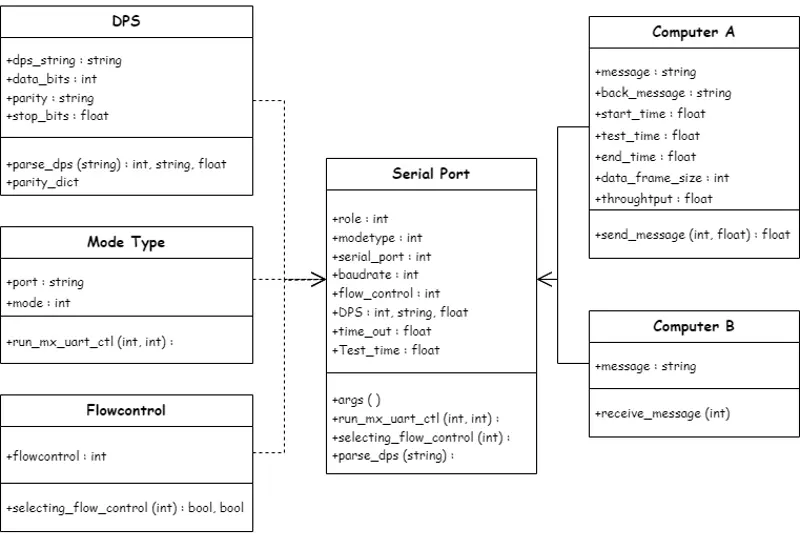

- Documented the tool with UML diagrams for team reference
Result
Outcomes & Impact
Streamlined the QA testing process significantly, improving testing efficiency and reducing manual testing time. The modular design allowed easy extension for future testing requirements across ARM and x86 architectures.
Tech Stack
programming
- Python
libraries
- Pyserial
platforms
- Linux
- ARM
- x86
tools
- UML Plant Diagram
Key Features
- Serial port communication control
- Throughput testing capabilities
- Data transmission verification
- Multi-architecture support
- Modular architecture
- User-friendly interface
- Comprehensive error reporting
